Tuesday, December 15, 2009

Chorus as vibrato

Much as I hate to say it the sound of a chorus pedal is just not as popular as it used to be. However you can get some spacey sounds out of a chorus pedal by turning it into a vibrato.

The chorus effect is usually a mix of a dry signal with a vibrato (pitch modulated) signal. Many stereo choruses provide a split signal with a dry signal coming out one output jack and a vibrato signal coming out another output jack.

On the Boss CE-3 it's as simple as setting the mode to stereo and only using one of the output signals. The standard setting is a mono mode. In stereo mode the vibrato signal comes out of output jack A.


The modulation rate was a tad slow for my tastes to I modified the oscillator circuit to increase the maximum rate. While I was in there I also upgraded some electrolytic caps to film.

Monday, December 07, 2009

Tightening the play in the Snarlin Dog Wah

I was getting some good use of the Snarlin Dog Whine-o-Wah. But then the pedal started to have some loose play. The pedal wouldn't stay in a fixed position. When I took my foot off it would flop down into the full toe position.

Hmmm, time to fix it. Taking a look at the wah, it looks like there is a leaf spring that holds the pedal in position by friction.


So if the spring were a little tighter there should be more friction. Looking at the underside of the pedal I noticed a small hole in the heel. So I took the rubber heel pad off the pedal. Ah, we now have access to a screw.


Tightening the screw pushes down the leaf spring onto the rod that crosses the pedal. After a few adjustments I could lift my foot off the pedal and it would stay in the same spot.

Wednesday, December 02, 2009

BOSS ACA to PSA power supply mod

The older BOSS pedals may not work correctly with a modern AC power adapter (like a 1-Spot or Boss PSA). These older pedals required the Boss ACA adapter and they have a sticker on the housing right next to the power supply jack. The ACA supplied a higher voltage than the PSA. The ACA voltage is unregulated and the PSA supplies a regulated voltage. The ACA-style pedals have a series resistor (and diode) that drops some voltage from the power supply. The pedal might not get enough voltage if you use a PSA power supply on a ACA pedal.

In my case I had a CE-3 chorus that worked fine with a battery. But when I used a PSA supply the LED wouldn't light up when I engaged the pedal. I also had a HM-2 that sounded really terrible and ratty with the PSA supply.

There are two workarounds:

1. Daisy-chain the power supply (in parallel) to some non-ACA pedals. These will drop the supply voltage.

2. Modify the ACA pedals to accept the PSA supply.

The mod is simple: jumper the series resistor. The newer Boss pedals do not have this series resistor. This mod has no effect if you are using the battery - the resistor is cut out of the circuit if nothing is plugged in to the power supply jack. The jumper can be placed at the numbered wire connections at the end of the board near the control knobs.

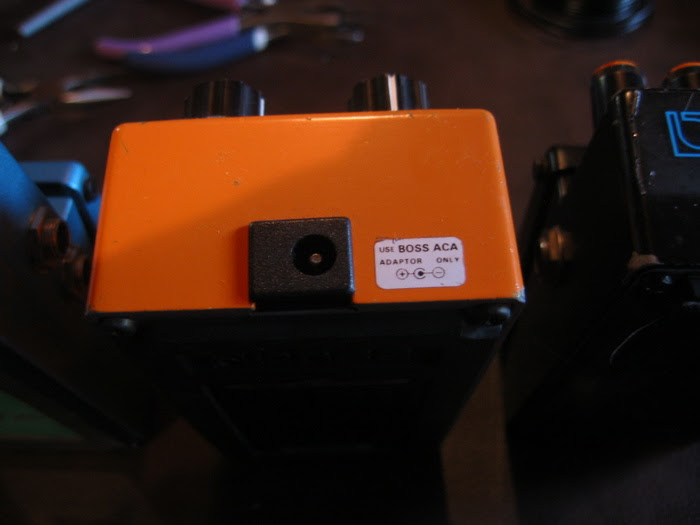

Here is the ACA sticker on a DS-1 Distortion pedal.



For all the pedals in my stash, the mod is to jumper the blue wire that goes to the power supply to the yellow wire that goes to the input jack. On the CE-3, that's holes 2 and 3.

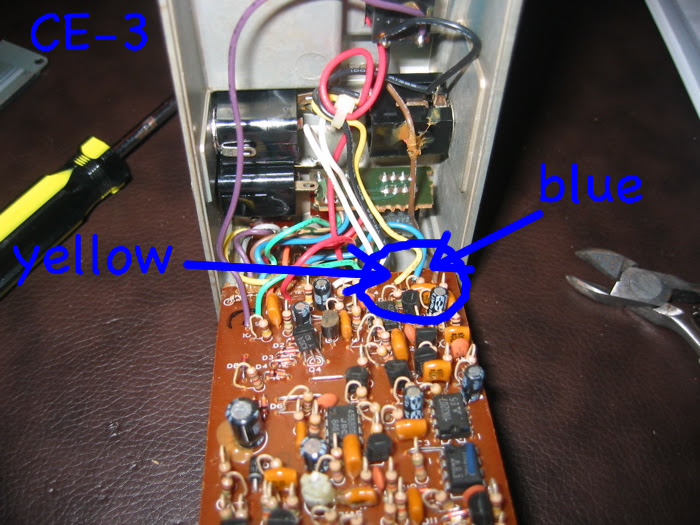

Here's the jumper for holes 2 and 3 on the CE-3 chorus. I just used part of component lead for the jumper wire.

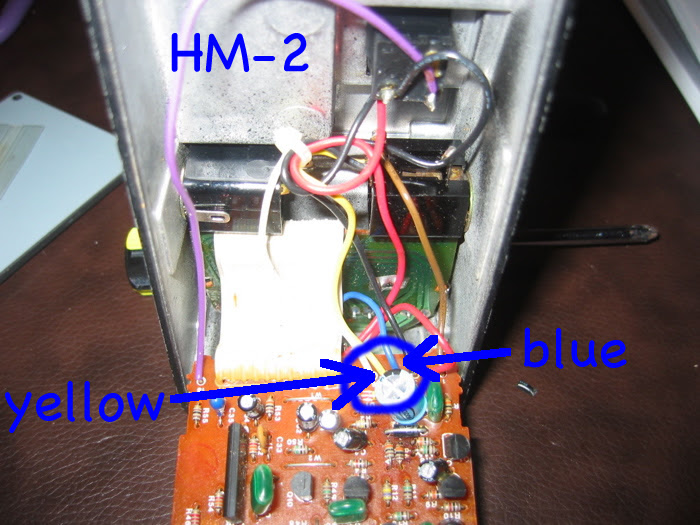

For the HM-2 Heavy Metal the holes are 4 and 5.



Ah, the DS-1 has two sets of blue and yellow wires! Joy! But by looking at the connections to the power supply jack and input jack you can see that holes 10 and 11 should be jumpered.

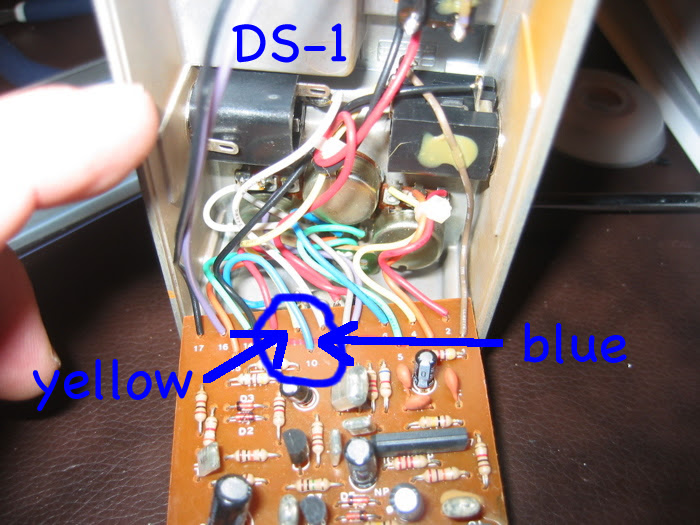

Here's the jumper between holes 10 and 11 on the DS-1.



The pedals can now be used with a single modern AC adapter power supply. They also sill work fine when daisy-chained to other pedals. And they still work fine when power by an internal battery. Joy!

This article by stinkfoot provided some very useful background information on the ACA/PSA issue.
